Automatic 80m/min 1kw 3000KG Fiber Laser Cutting Machine
Description
1. high-strength linear guide and imported high precision YYC rack.That ensure the laser machine continuously work for a long time working but deformed. Improve laser cutting accuracy and extend the machine lifetime.
2. High precision drive motor.The X / Y/Z axis uses a high-precision Yaskawa servo motor and drive. Improve response speed and cutting accuracy.
3. High-load mechanical mechanism.Adopting seamless welding and body bending technology.More scientific design and high-strength steel-frame structure, which increase more than 40% fuselage strength to prevent the machine from distortion during long time work.That can make sure the machine stable and reliable working performance.
4. The rail and rack automatic oil lubrication system can set the oiling interval and the amount of oil per load according to the working conditions of the machine.
5. Auto partitioned exhausted system.The smoke gas generated by the cutting can be completely eliminated.
|
project
|
parameter
|
unit
|
|
Processing size
|
(L)
|
3000
|
mm
|
|
|
(W)
|
1500
|
mm
|
|
X/Y axis positioning accuracy
|
±0.05
|
mm
|
|
X/Y axis repeatable positioning accuracy
|
±0.03
|
mm
|
|
X/Y maximum positioning speed
|
80
|
m/min
|
|
Laser generator power
|
1000
|
W
|
|
Cutting capacity: carbon steel plate
|
12
|
mm
|
|
stainless steel
|
6
|
mm
|
|
aluminum
|
4
|
mm
|
|
brass
|
3
|
mm
|
|
Maximum acceleration of X/Y
|
1.5
|
G
|
|
Motion stroke (axis)
|
X
|
3020
|
mm
|
|
|
Y
|
1520
|
mm
|
|
|
Z
|
150
|
mm
|
|
Number of phase
|
3
|
|
|
Power rating
|
380
|
V
|
|
frequency
|
50
|
Hz
|
Application Materials
Fiber Laser Cutting Equipment is suitable for metal cutting like stainless steel sheet, mild steel plate,carbon steel sheet, alloy steel plate, spring steel sheet, iron plate, galvanized iron, galvanized sheet, aluminum plate, copper sheet, brass sheet, bronze plate, gold plate, silver plate, titanium plate, metal sheet, metal plate, etc.
Application Industries
Industries includes all metal processing industries ,includes Electric Cabinet, House decoration ,Kitchenware, Car spares and accessories ,Saw Blade, Mechanical Parts, Electrical Equipment Components, Lighting hardware ,Display equipment ,Cooking Utensil, Hardware, Crafts, Spectacle Frame, Advertising channel letters, Subway Parts, Household Appliances, Electrical Appliance, Precision Components, Tools, Gifts and Crafts, , Gearing Components, Reamer ,Aviation and ship building ,etc.
It can zarry on non-contact cutting on metal sheet, pipe, especially for stainless steel, sttel plate,diomond saw blades and othermetal materials, it has excellent processiong for the various high-brittle hard alloys. In the lines of hardware and metal sheet industries, laser cutting technology can be partially replace the line cutting.
Product Tags:
|
|

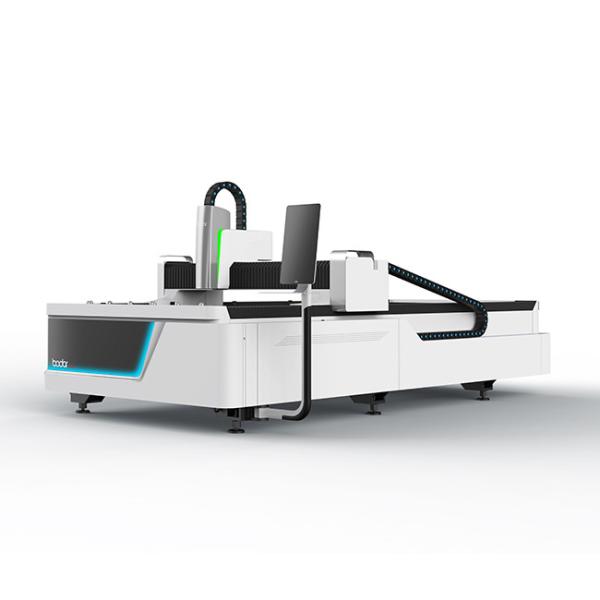

Automatic 80m/min 1kw 3000KG Fiber Laser Cutting Machine Images
|
